Modular Watermaker Kit

LEDI Modular Kit — Permanent install, your way.

The same proven Scout and Nomad components, broken into four pre-assembled modules. Mount them, plug them together, and run the system from a remote panel. No fabrication. No guesswork.

Download Brochure
VersionSelected: 20 LPH - Standard
UV SteriliserSelected: UV Steriliser
Power SupplySelected: 12V
$5,499AUD

freight Australia-wide · Ships in 1–2 weeks · 2-year warranty

Talk to LEDI before you order. Need help matching your boat layout, output and voltage? Call 0494 562 668 — we'll spec your install and walk through hose runs, power and panel placement.
✓ Australian Veteran-owned✓ Built on the Gold Coast✓ Standard service parts
Why Modular

Built for a clean permanent install, not a compromise retrofit.

LEDI Modular is the right choice when you want the watermaker installed out of sight, controlled from a practical onboard location, and matched to your boat's real daily water demand.

Best for
Below-deck installsClean fit-outs and regular onboard use.
Output range
10 – 160 LPHSix configurations, 12 V or 24 V.
Why it feels different
Remote panelAuto flush, larger pre-filtration, hands-off ownership.
Install time
One weekendPre-assembled modules, no fabrication.
Designed for self-installation

Engineered to remove the usual risks of fitting a watermaker.

High-pressure plumbing, electrical interfaces, and control logic are all standardised — so competent owners can install a Modular kit themselves, without sacrificing reliability or serviceability.

Install drawing
Install drawingModule footprints, mounting holes, hose runs and power.
  • 01

    Four pre-assembled modules

    Compact, manageable, easy to position in tight spaces. Mount them, plug them together, and connect to your boat.

  • 02

    No custom fabrication

    Standardised high-pressure plumbing, electrical interfaces and control logic. No bracket-making, no guesswork on routing.

  • 03

    Tolerant of real-world conditions

    Self-priming intake, mechanical pressure protection, automatic flushing and continuous water-quality monitoring all built in.

  • 04

    Australian-based technical support

    Diagram-based install documentation, plus Australian phone support if you hit a tricky run.

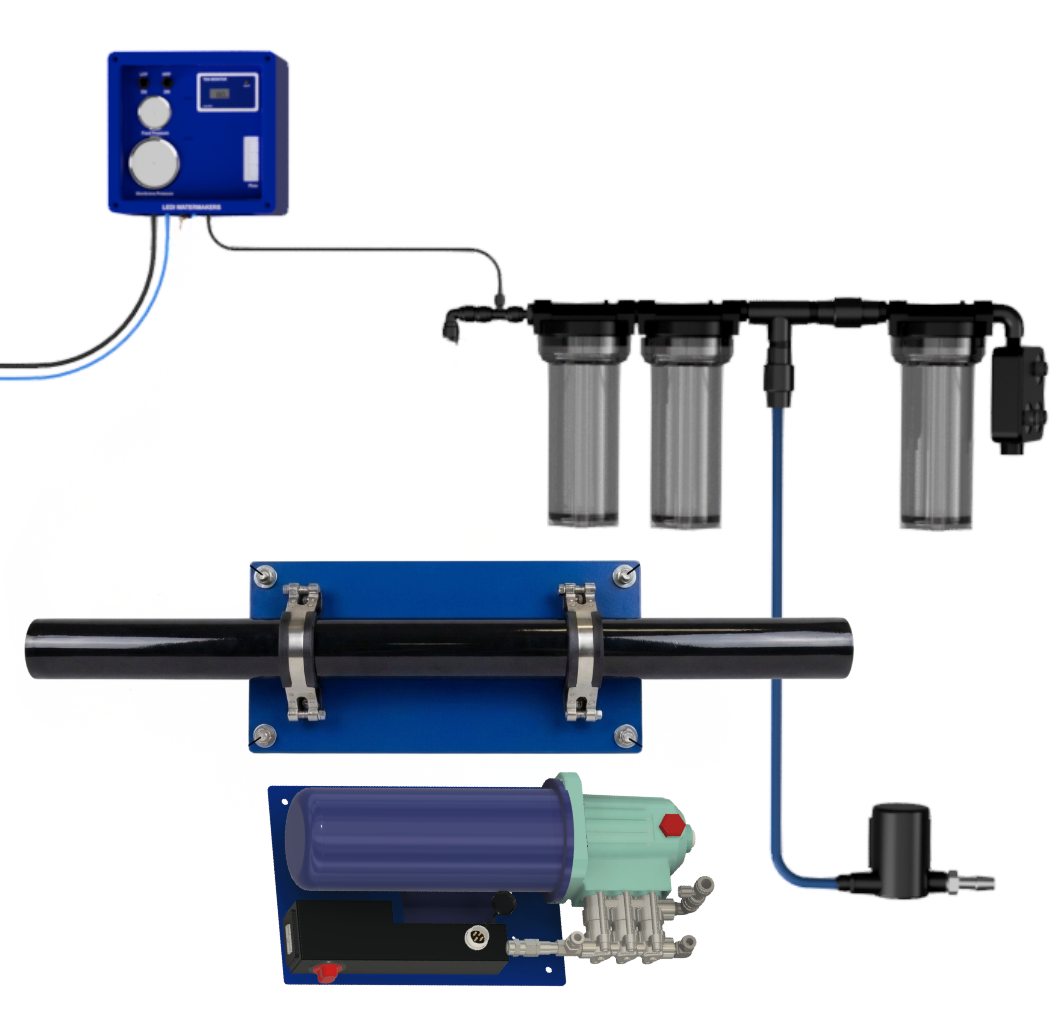

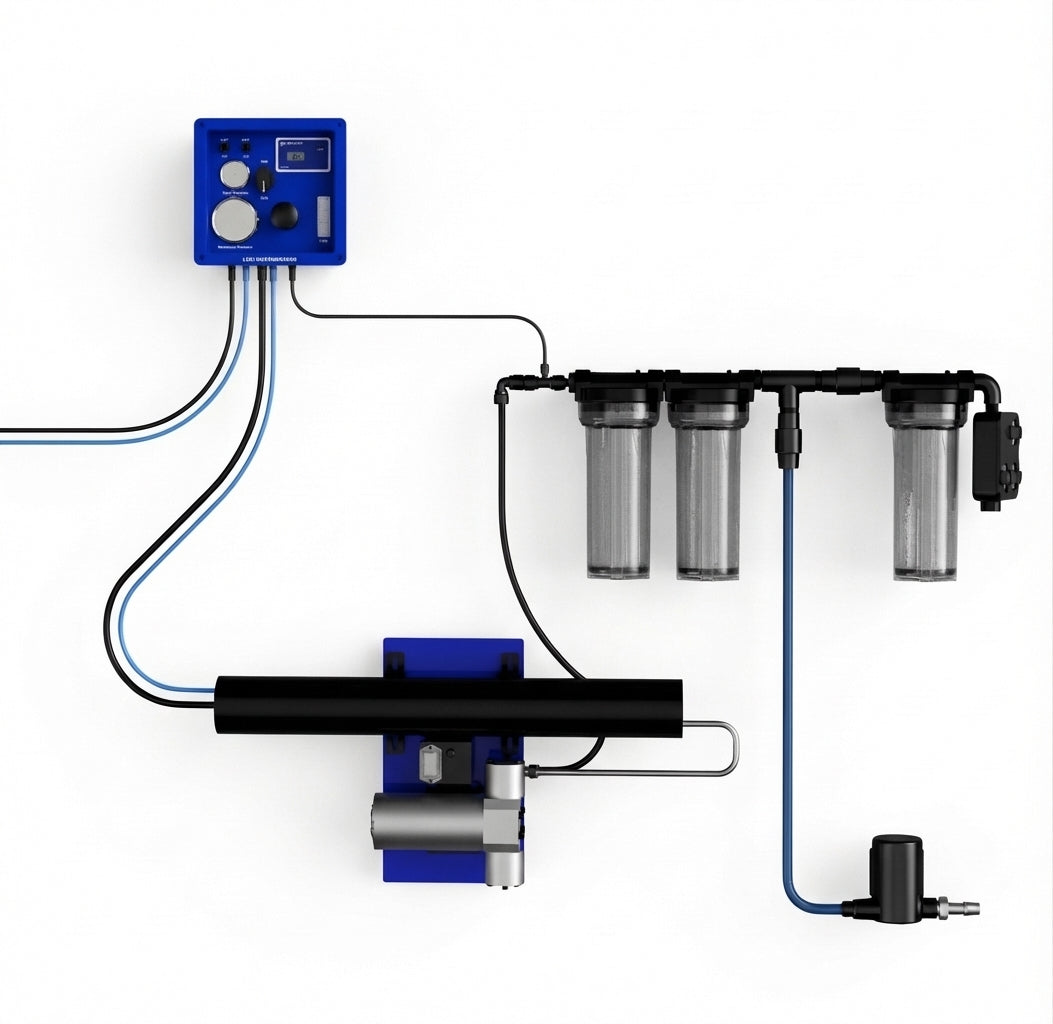

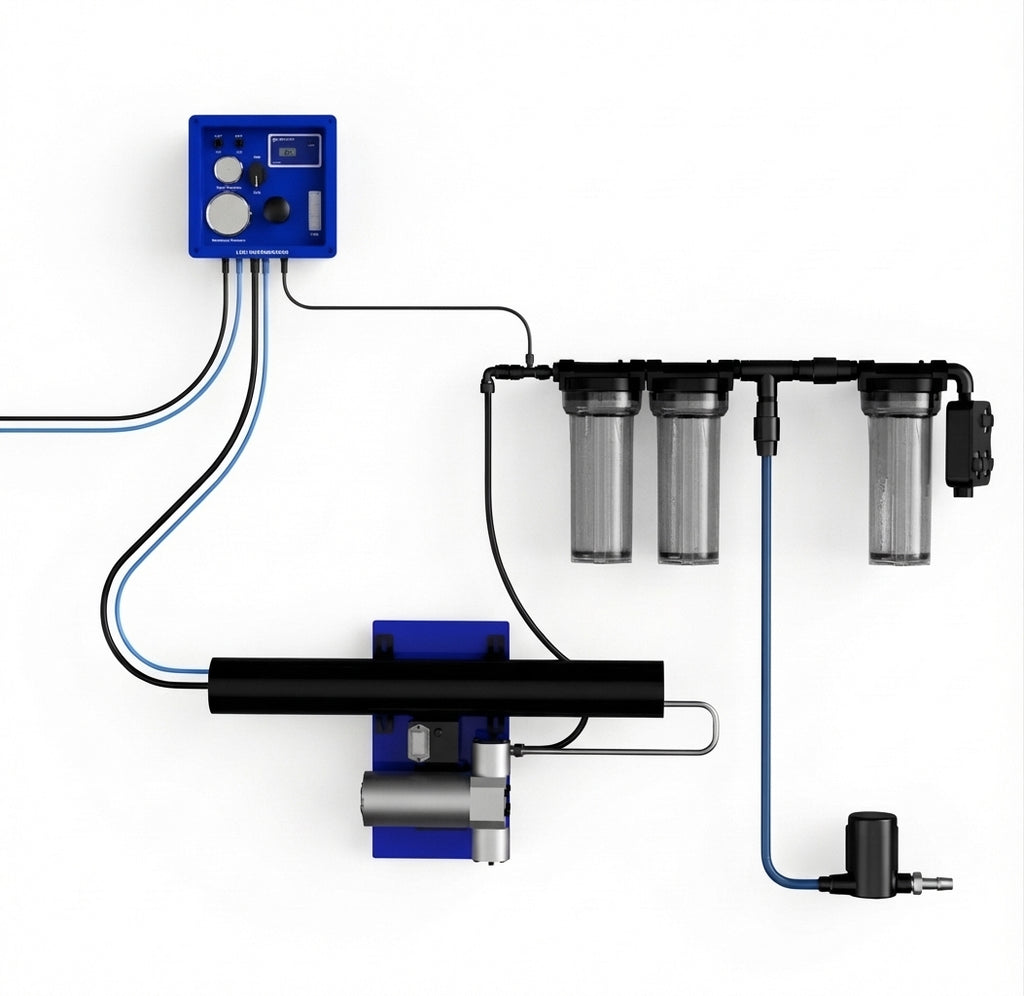

The four modules

Same proven components — broken into the right shape for a permanent install.

Each module ships pre-assembled, pressure-tested and ready to mount. Click any module for the engineering rationale.

01 Pump module Pump module

Pump module

Continuous-duty brushless feed pump paired with the right 316 stainless high-pressure plunger pump for your output band.

  • ✓ Pumptec 107SS up to 20 LPH · CATPUMP 2SFSEEL up to 160 LPH

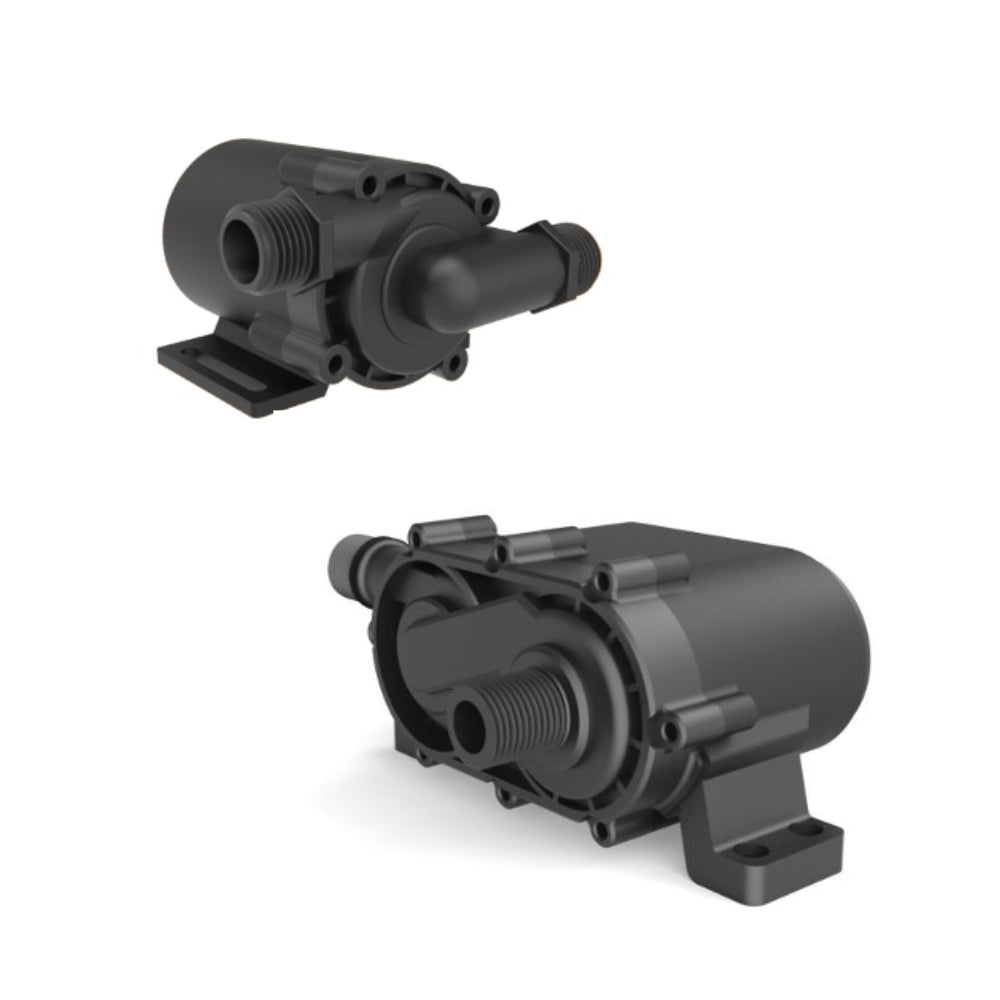

  • ✓ Brushless centrifugal feed pump — fully waterproof
  • ✓ Dry-run protection, blocked-port protection, auto restart
  • ✓ 1/2" ID inlet · sea strainer · all wiring included
02 Prefilter module Prefilter module

Prefilter module

Larger 2.5"×10" filter bank with auto-flush controller. Longer service intervals than the portable units, plus protected storage.

  • ✓ 20 µm + 5 µm pleated prefilters — 2.5"×10"
  • ✓ 5 µm carbon block for system flushing
  • ✓ Programmable auto-flush controller — protects membrane
  • ✓ 316 SS spring non-return valves · stainless pressure gauge

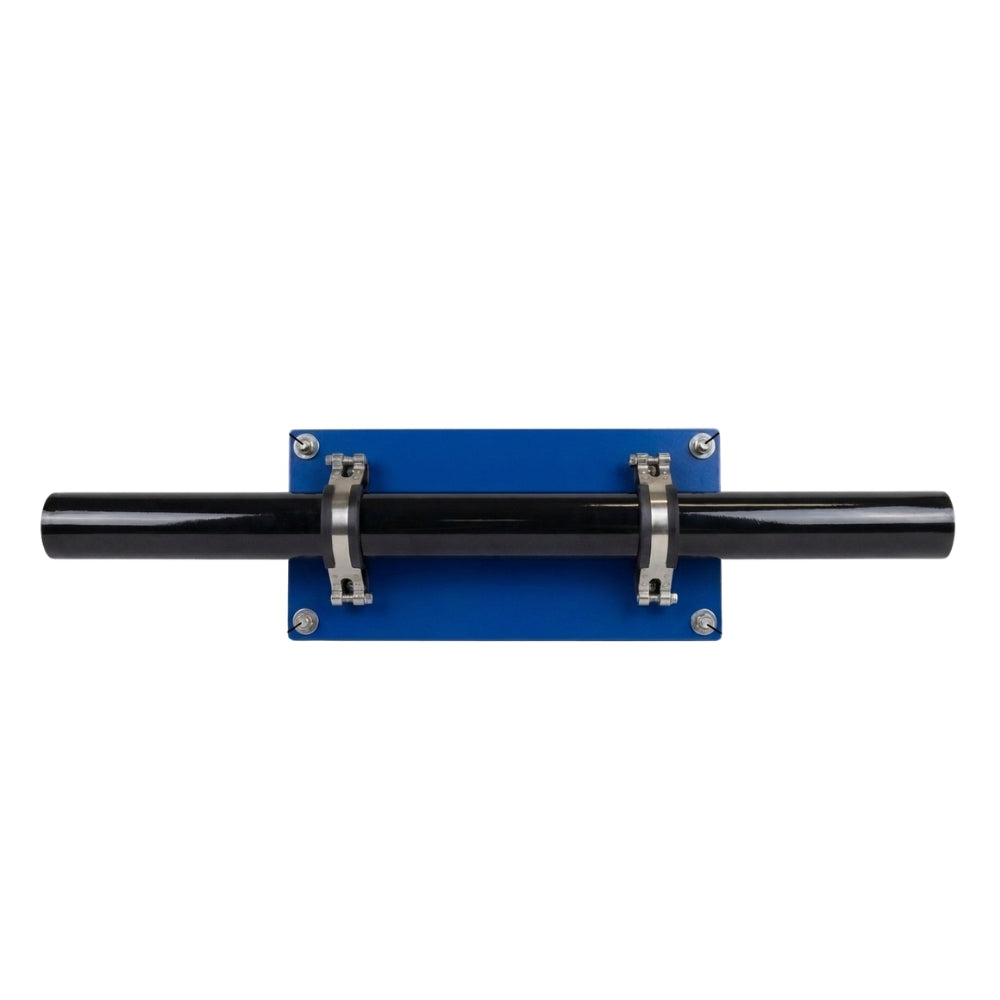

03 Membrane & housing Membrane and housing

Membrane & housing

Configured around both space and output — five layouts so the system fits the room you actually have.

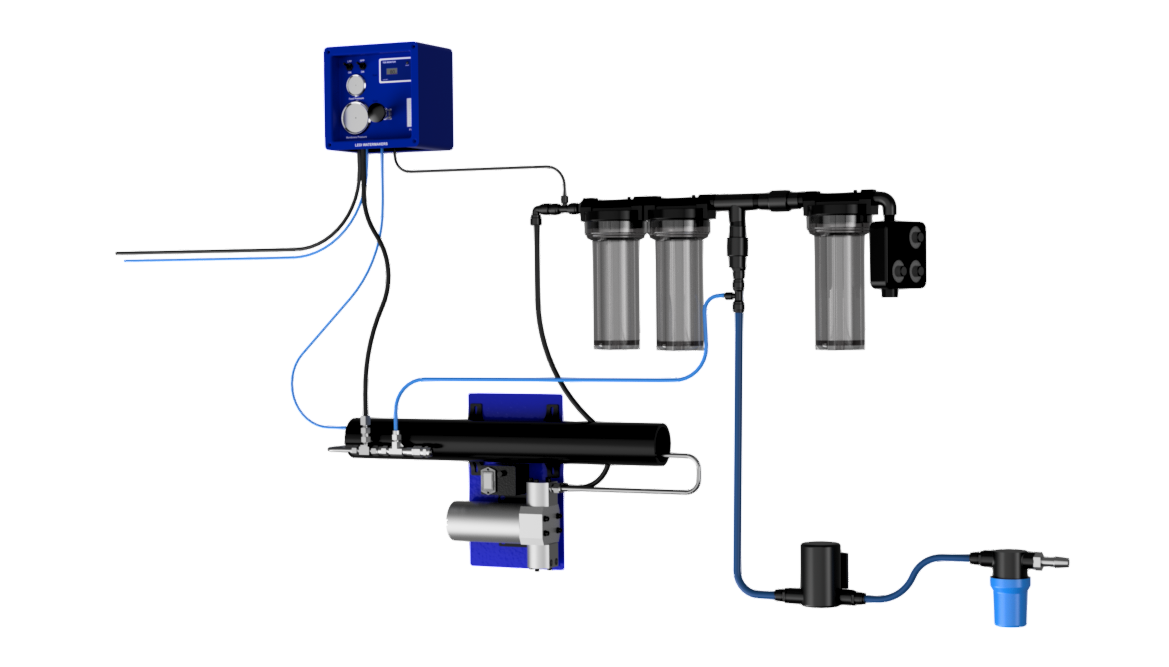

  • ✓ 1×2521 — 20 LPH (Pumptec) or 40 LPH (CATPUMP)
  • ✓ 2×2514 series — same output, tighter spaces
  • ✓ 2×2521 series — 60 to 80 LPH with CATPUMP
  • ✓ 1× or 2×2540 — up to 160 LPH on 48 V CATPUMP

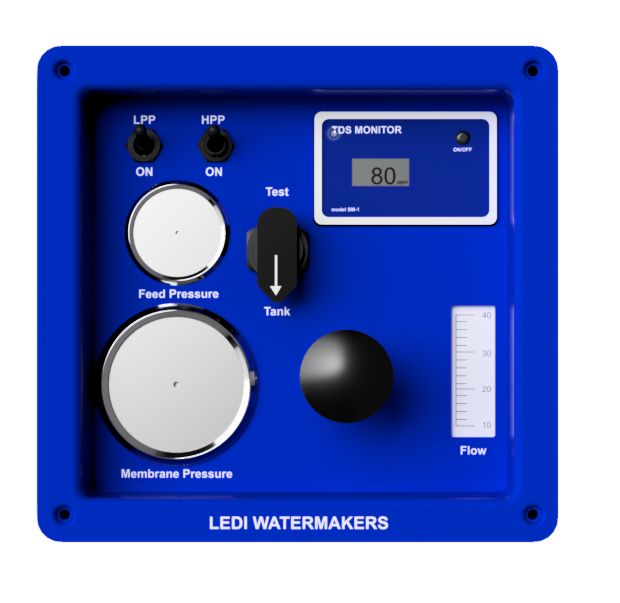

04 Remote panel Remote control panel

Remote control panel

Powder-coated aluminium panel, surface or flush mount. Run the watermaker from where it actually makes sense onboard.

  • ✓ 316 SS feed and membrane pressure gauges
  • ✓ Analogue permeate flow meter — 4-40 or 10-100 LPH
  • ✓ TDS sensor · permeate selector for tank or waste
  • ✓ 1.5 m connecting hoses · mount within 1.5 m of pump module
Key features

Built around the things that make installed ownership simpler.

Auto freshwater flush

Programmable timer flushes the membrane after every run. Greatly extends life and reduces maintenance when the system isn't in regular use.

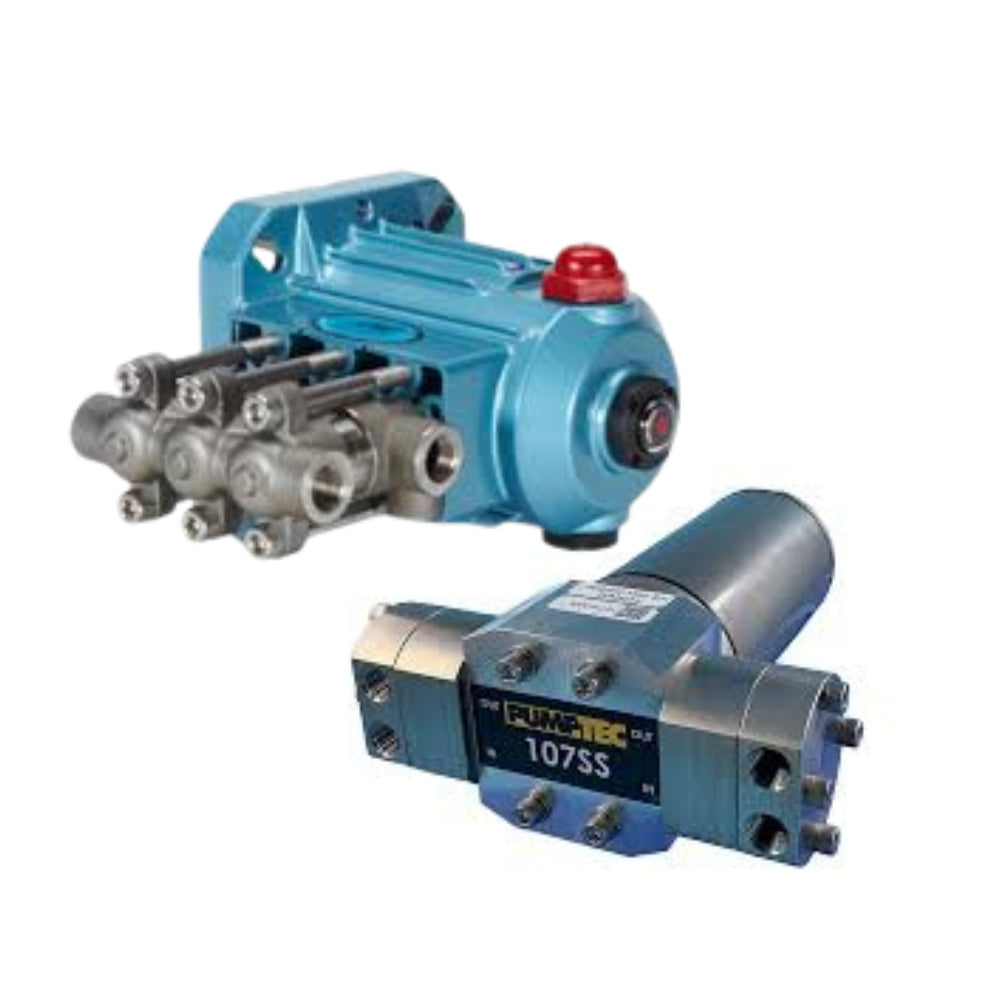

Pumptec 107SS & CATPUMP 2SFSEEL

Ultra-compact, fully 316 stainless plunger pumps. Chosen for efficiency, durability and long service life in continuous-duty desalination.

Two-stage prefiltration + carbon

20 + 5 µm pleated cartridges and a 5 µm carbon block. Protects the membrane, reduces fouling and improves long-term reliability.

Remote control panel

Pressure gauges, flow meter, TDS, switches and selector — all on one panel. Install hardware out of sight, control from where you live.

LED UV steriliser Optional

Adds a final UV polish stage for biological safety in stored potable water. LED-based — no lamp to ever change.

SS pressure relief Optional

Stainless steel pressure relief valve for mechanical protection against overpressure and operator error.

TDS sensor included

Total dissolved solids meter on the panel. Immediate confirmation that product water is within spec — every minute of every run.

Product water flow sensor

Confirms the system is producing the flow it should — and makes fault diagnosis straightforward when something drifts.

12 V or 24 V — 10 to 160 LPH

Six output bands and two voltages. Match the kit to your boat's real daily water demand instead of running a single oversized config.

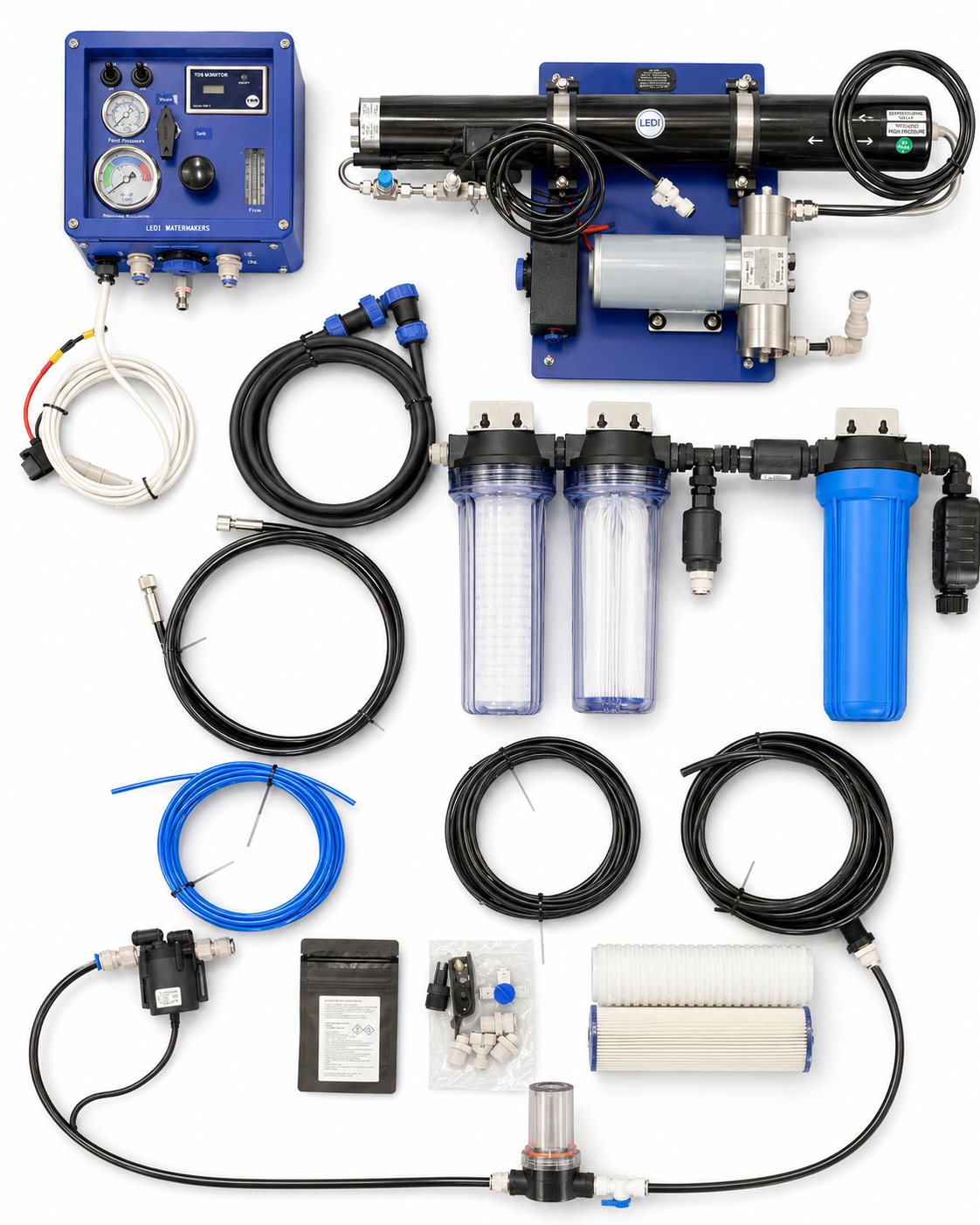

What's included in the kit

Everything that bolts to your boat — pre-assembled and pressure-tested.

Open the crate, mount four modules, route hoses, run power. The interface points below are deliberately standard so you can plumb into existing seacocks and freshwater supply.

M01

Pump module

  • ✓ High-pressure plunger pump (Pumptec 107SS or CATPUMP 2SFSEEL)
  • ✓ Brushless centrifugal feed pump — continuous duty
  • ✓ 1/2" ID inlet hose · intake sea strainer
  • ✓ All high- and low-pressure connections, full wiring loom
M02

Prefilter module

  • ✓ 20 + 5 µm pleated prefilters · 2.5"×10"
  • ✓ 5 µm carbon block filter · 2.5"×10"
  • ✓ Auto-flush controller · hose barb to boat freshwater
  • ✓ 316 SS spring non-return valves · stainless pressure gauge
M03

Membrane & housing

  • ✓ RO membrane(s) sized to chosen output band
  • ✓ 2521 / 2514 / 2540 housings — single or series layout
  • ✓ End caps, brine restrictor, mounting brackets
  • ✓ Pre-charged with food-safe storage solution
M04

Remote panel

  • ✓ 316 SS high-pressure gauge · low-pressure gauge
  • ✓ Needle valve · product water sample valve
  • ✓ 4-40 or 10-100 LPH analogue flow meter · TDS meter
  • ✓ Pump power switches · 1.5 m hoses to watermaker

Standard interface points

The six connection points to your boat — published openly so you can plan the install before the crate even ships.

  • 01Seawater inlet — from seacock · 1/2" ID pipe
  • 02Freshwater flush — from pressure water · 3/4" BSP female
  • 03Brine outlet — overboard · 1/4" pushfit tube
  • 04Product water — to tank · 1/4" pushfit tube
  • 05Power — 12 V 25 A · Anderson plug to pump module
  • 06Higher draw — 70 A DC cable for CATPUMP configurations
Install

From crate to first litre — four practical steps.

The order is deliberate. Mount first so hoses and cables sit naturally, then plumb, then power, then commission. A weekend job for a competent owner.

01Mount

Mount the four modules

Position pump module, prefilter module, membrane housing and remote panel using the install drawing. All within 1.5 m of each other.

02Plumb

Connect the standard interfaces

Seacock to inlet, freshwater feed to flush port, brine and product water out. Pushfit and BSP — no high-pressure fabrication.

03Power

Wire up 12 V or 24 V

Anderson plug to the pump module for standard kits, or 70 A DC cable for CATPUMP configurations. Fuse and switch supplied.

04Run

Prime and commission

Open the seacock, prime through the carbon block, set auto-flush timer, switch to RUN at the panel. Watch TDS settle below 500 ppm.

Specifications

Output, power, dimensions and source-water limits — by configuration.

Switch tabs for each output band. Need a custom layout? Talk to LEDI before ordering.

Performance
Output (sea water at 25 °C)20 LPH
High-pressure pumpPumptec 107SS · 316 SS
Membrane layout1 × 2521
Voltage12 V or 24 V DC
Current draw16 – 20 A
Power< 220 W
Salt rejection99.4 %
Duty cycle4 hrs on, 20 min off
Source water
Max salinity40,000 ppm
Max SDI< 5
Max water temperature45 °C
Max free chlorine< 0.1 ppm
Continuous pH2 – 11
Recovery rate< 40 %
Modules & install
Pump module440 × 320 × 220 mm · 14 kg
Prefilter module520 × 280 × 180 mm · 8 kg
Membrane module560 × 120 × 120 mm · 6 kg
Remote panel340 × 240 × 60 mm · 3 kg · powder-coated aluminium
Inter-module hoses1.5 m supplied · longer runs on request
Suction head3 m vertical · 15 m horizontal
Maintenance
Pleated prefilters (20 + 5 µm)Replace every 3–6 months · standard 2.5"×10"
Carbon blockReplace every 6 months · standard 2.5"×10"
RO membraneSW30 2521 (Vontron / DuPont) · replace every 2–3 yrs
HP pump service kitPumptec service kit available
Auto flushProgrammable — 1, 3 or 7 day intervals
FittingsHP: Swagelok-style 316L · LP: 1/2" & 1/4" food-grade pushfit
Buying FAQs

Common questions before you order.

Can't see what you need? Send a photo of your machinery space and we'll spec the install for you.

Email LEDI →
How do I choose the right output for my boat?

Use a practical guide of 5 to 10 litres per person per day for drinking and cooking, plus extra for washing. 10 to 20 LPH is right for lighter use and smaller crews. 20 to 40 LPH is the common sweet spot for liveaboard cruising. 40 LPH and above suits heavier daily demand or larger tanks.

Choose the closest output and voltage, then call us to confirm before ordering.

Can a competent owner self-install?

Yes — that's exactly what the kit is engineered for. Modules are pre-assembled with all high-pressure plumbing, electrical interfaces and control logic standardised. You mount four modules, plug them together, and connect five interface points to your boat.

Detailed install drawings are included. Australian-based phone support is available if you hit a tricky run.

What's the difference between Pumptec and CATPUMP setups?

For flow rates up to 20 LPH, LEDI uses the 316 stainless Pumptec 107SS plunger pump. For higher-output configurations we step up to the 316 stainless CATPUMP 2SFSEEL platform — capable of up to 160 LPH. All CATPUMP-based systems include integrated pressure-switch protection against dry running, which makes them the stronger choice when output and duty cycle increase.

How does auto freshwater flush work?

The prefilter module includes a programmable timer and a hose barb to your boat's pressurised freshwater supply. After every run, the system pulls clean water through the carbon block and across the membrane to remove residual seawater. Greatly extends membrane life when the system isn't in regular use.

How fast does it ship?

Modular kits are built to order on the Gold Coast. LEDI aims to ship within 2–3 weeks depending on configuration and build queue. If you have a hard deadline (haul-out, delivery trip, refit), call us before ordering and we'll let you know what's realistic.

What maintenance should I expect?

Replace pleated prefilters every 3–6 months and the carbon block every 6 months — all standard 2.5"×10" cartridges, available from any RO supplier. Membranes last 2–3 years with proper auto-flush. The HP pump uses a service kit that LEDI keeps in stock.

Built for permanent installs

Where modular makes sense.

Out of sight in the machinery space, controlled from a panel by the helm. The same DNA as Scout and Nomad — purpose-shaped for a clean fit-out.

Cruising yachts
Cruising yachts
20–40 LPH · auto flush · panel by the nav station
Power boats
Power boats
40–60 LPH · CATPUMP · 24 V install
Catamarans
Catamarans
60–80 LPH · 2×2521 series · twin-tank fit-out
Off-grid bases
Off-grid bases
80–160 LPH · 48 V · 2×2540 layout
Spares & accessories

Standard parts. Easy to find. Always in stock.

View all spares →
Pleated prefilter set

Pleated prefilter set

20 + 5 µm · 2.5"×10"
$45
Carbon block filter

Carbon block filter

5 µm · 2.5"×10"
$28
RO membrane

RO Membrane

SW30 2521 · Vontron / DuPont
$300
HP pump service kit

HP pump service kit

Pumptec 107SS · seals + plungers
$185

Not sure which configuration fits your boat?

Send a photo of your machinery space and tell us your crew size, tank volume and runtime. We'll spec the layout, voltage and output band before you order.
