Native DC · 40–80 LPH Marine Watermaker
Nomad
Native DC power · Straightforward controls · Genuine CAT Pumps
Direct battery power. Straightforward operation. Genuine CAT Pumps hardware. Nomad combines 40–80 L/h output with integrated controls and Gold Coast support for cruising and off-grid setups.
-
Native 12/24V DC power — run directly from a suitable battery system, without an inverter or generator for DC operation.
-
Genuine CAT Pumps 2SFSEEL — compact direct drive, a 316 stainless liquid end and replaceable seal and valve kits.
-
Straightforward controls — pressure gauges, TDS monitor and flow meter on one panel, with UV steriliser included as standard.
-
Choose your output — 40, 60 or 80 L/h depending on configuration and operating conditions. 48V BLDC available as a custom premium upgrade.
-
Built and supported on the Gold Coast — marine construction, 316 stainless DEFLOK fittings and local service support.
Transportable design · approximately 50 kg
46–52 kg dry, depending on model. Plan handling, placement and storage before setup. Nomad can be relocated between setups.
$9,899
AUD
incl. GST · ex. shipping
Price updates with your configuration. Single-membrane and double-membrane builds are priced separately.
Running a 48V bank? A 48V BLDC motor is available as a custom premium upgrade — longer service intervals and higher efficiency. Talk to an engineer to spec it.
Estimated system output
~320 L/day at 8 hrs run-time
40LPH
2SF15 on a 12V bank — high current draw. This pump pulls heavy amperage at 12V. We recommend the 24V motor for the 2SF15, or talk to an engineer about your wiring.
Questions? Call +61 494 562 668
Local warranty & support — backed by the Gold Coast team that built it.
Australian & international shipping available.
Built & serviced on the Gold Coast. Real engineers answer the phone.
Australian made
Veteran-owned · built on the Gold Coast
Local warranty & support
From the team that built it
Native 12 / 24V DC
Direct battery power · 48V BLDC custom upgrade
Ships worldwide
AU & international

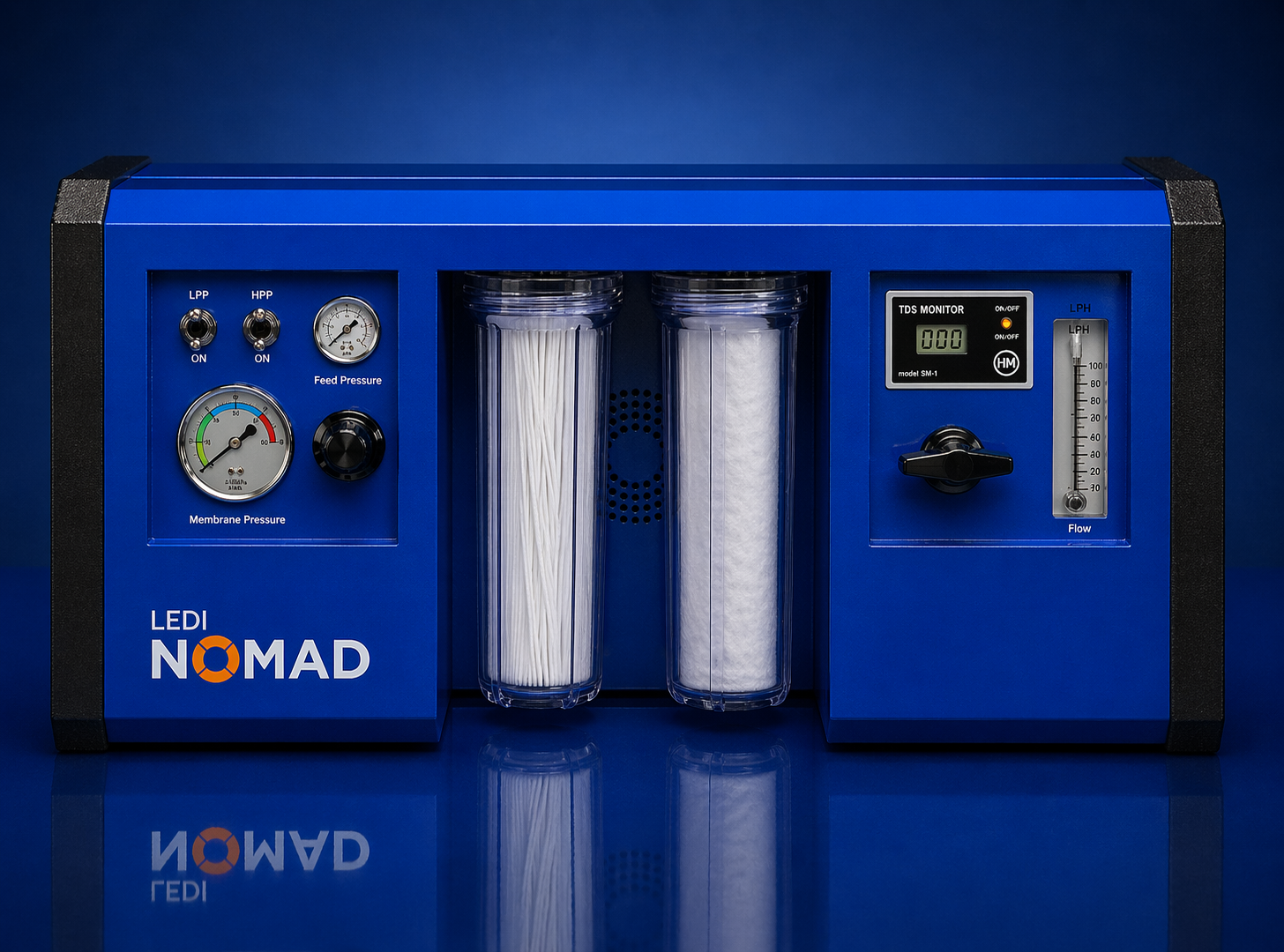

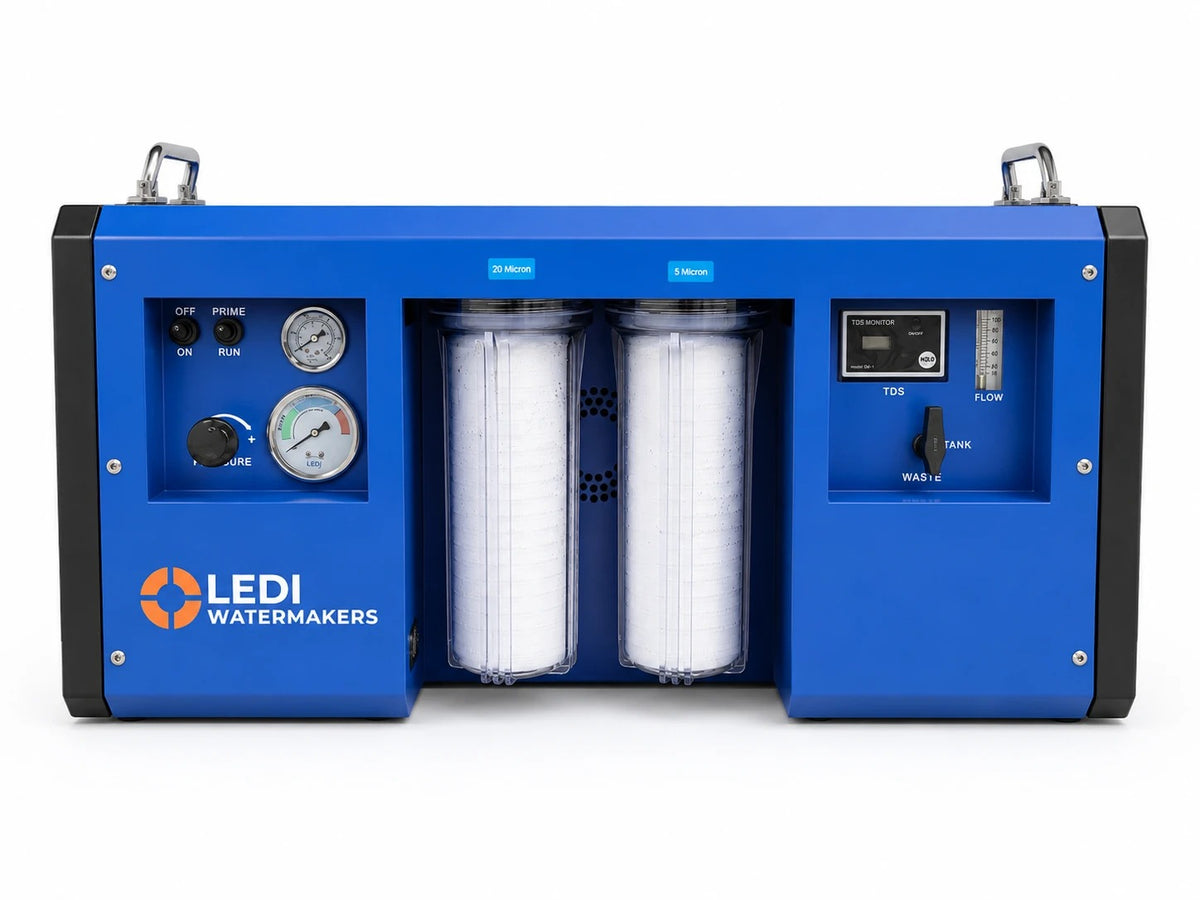

The Nomad control panel
Every control where you can see it.
Straightforward switches and visible readings. Monitor feed pressure, membrane pressure, freshwater flow and TDS from the integrated front panel.
Built to be run, not babied.
Prime, run, flush and verify — every control is on the front face, so you always know exactly what the unit is doing.
- 1LPP & HPP switchesLow- and high-pressure pumps on toggles. Prime, run, flush — all in your hand.
- 2Feed & membrane gaugesDual analog gauges. See pressure on the pre-filter and the RO membrane at a glance.
- 3TDS monitor (SM-1)On-board total dissolved solids reading in ppm. Confirms the water is safe to drink before it reaches the tank.
- 4LPH flow meterLive litres-per-hour. Tune your back-pressure regulator without guessing.
How Nomad makes water
Four stages from seawater to tank.
1 · Pre-filter
Seawater is drawn in through a stainless intake strainer and passed through a 2-stage pre-filter — sediment, fines, then a polish stage to protect the membrane.
2 · Reverse osmosis
The high-pressure pump forces water through a marine-grade RO membrane at ~55 bar. Salt and contaminants stay behind. Fresh water comes through the other side.
3 · UV disinfection
After the membrane, fresh water passes through a UV-C steriliser that inactivates bacteria and viruses — a final safeguard so the water going into your tank is safe to drink.
4 · Verify & tank
The TDS monitor confirms the output reads < 500 ppm. The flow meter shows real litres-per-hour. Clean water flows directly into your fresh tank.
The heart of the Nomad
Why we build around CAT Pumps.
The high-pressure pump is the hardest-working part of any watermaker. We didn't design our own — we built the Nomad around the best one we could buy.
Genuine CAT Pumps 2SFSEEL — built to be serviced.
CAT Pumps have been building high-pressure plunger pumps in the USA since 1968 — they're known in the industry as "the pumps with nine lives". The 2SFSEEL is their seawater RO specialist, and it's the only high-pressure pump we fit to Nomad.
- 1Compact direct driveNo belts, no pulleys, no alignment to drift. The pump couples straight to the motor — that's how the whole module fits the Nomad chassis.
- 2Triplex plunger designThree plungers deliver smooth, low-pulsation flow at 55 bar, hour after hour.
- 3316 stainless liquid endCorrosion resistance where it counts — engineered for continuous seawater reverse-osmosis duty.
- 4Solid ceramic plungersExtremely hard wear surfaces mean long seal life and consistent pressure over thousands of hours.
- 5Built to be rebuiltSeal kits and valve kits are standard, off-the-shelf CAT Pumps parts — no proprietary lock-in, ever.
We stock genuine CAT Pumps service kits on the Gold Coast — seals and valves ship same-week, and we'll talk you through the swap on the phone.
Specifications
The numbers that matter.
Output
40–80LPH
Nomad 40 / 60 / 80 · varies with conditions
Power
12/24V DC
240V AC adapter available · 48V BLDC custom upgrade
Salt rejection
99.4%
< 500 ppm TDS at 35,000 ppm feed
Pressure
800PSI
55 bar recommended · Nomad 80 rated at 900 psi
HP pump
CAT2SFSEEL
316 stainless · direct-drive plunger · serviceable
Weight
46–52kg
Dry, by model
Dimensions
715 × 350 × 350 mm
W × H × D
Membrane
2.5in SWRO
Marine seawater grade
Warranty
Local
Australian warranty & support · Gold Coast
In the box
Everything in one chassis.

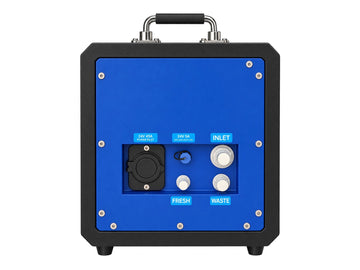

Nomad brings the controls and main watermaking components together in one chassis. Plan a suitable DC supply, seawater feed, brine discharge and freshwater connections, plus handling and placement for its approximately 50 kg weight.
1
Nomad head unit
Chassis, RO membrane, CAT Pumps high-pressure pump, pre-filter bank, UV steriliser and control face — assembled and tested on the Gold Coast.
2
Feed connection
1/2 in ID hose with camlock connection to the unit, plus auxiliary BLDC feed pump.
3
Spare pre-filters
2 spare pre-filter sets to keep your system running.
4
Product & discharge lines
1/4 in product water tube and 3/8 in discharge tube.
5
Direct LEDI support
Engineer-built, engineer-supported — for the life of the unit.
Frequently asked
Before you buy a Nomad.
Does the Nomad need to be fixed in place?
Nomad can be used in a removable setup or positioned for longer-term use. At approximately 50 kg (46–52 kg dry by model), it is transportable rather than a lightweight carry unit. Plan handling, stable placement, hose routing and DC connections before use. Talk to LEDI about the layout for your boat.
What's the difference between Nomad and Scout?
Scout is the lighter grab-and-go option at 10 or 20 LPH. Nomad steps up to 40, 60 or 80 LPH, a genuine CAT Pumps high-pressure pump and integrated controls. At approximately 50 kg, Nomad suits owners who can accommodate its weight and want the option to relocate the system.
What power options are available?
Nomad is available in 12V or 24V DC. A 48V BLDC motor is available as a custom premium upgrade — longer service intervals and higher efficiency for serious off-grid banks. A 1500W 240V AC waterproof power supply is also available. Talk to an engineer to spec a 48V or 240V setup.
What high-pressure pump does Nomad use?
Nomad uses a CAT Pumps 2SFSEEL stainless steel high-pressure pump, selected for long service life in harsh marine conditions.
Can it run on brackish water?
Yes. Nomad is built for seawater duty, so brackish water is an easier job. Output can increase and operating pressure can drop depending on salinity and feed conditions.
What's the warranty and service story?
Nomad is backed by local warranty and support. We're on the Gold Coast — when you call LEDI, you talk to the engineers who built it. Register your unit when it arrives and we'll take care of the rest. Spares ship Australia-wide; international service via our partner network.
Still have questions? Talk to one of our engineers →
Native DC power.
Straightforward operation.
Configure your Nomad — membrane output, onboard voltage and high-pressure pump — and we'll build it on the Gold Coast and ship it anywhere. Backed for the life of the unit.
